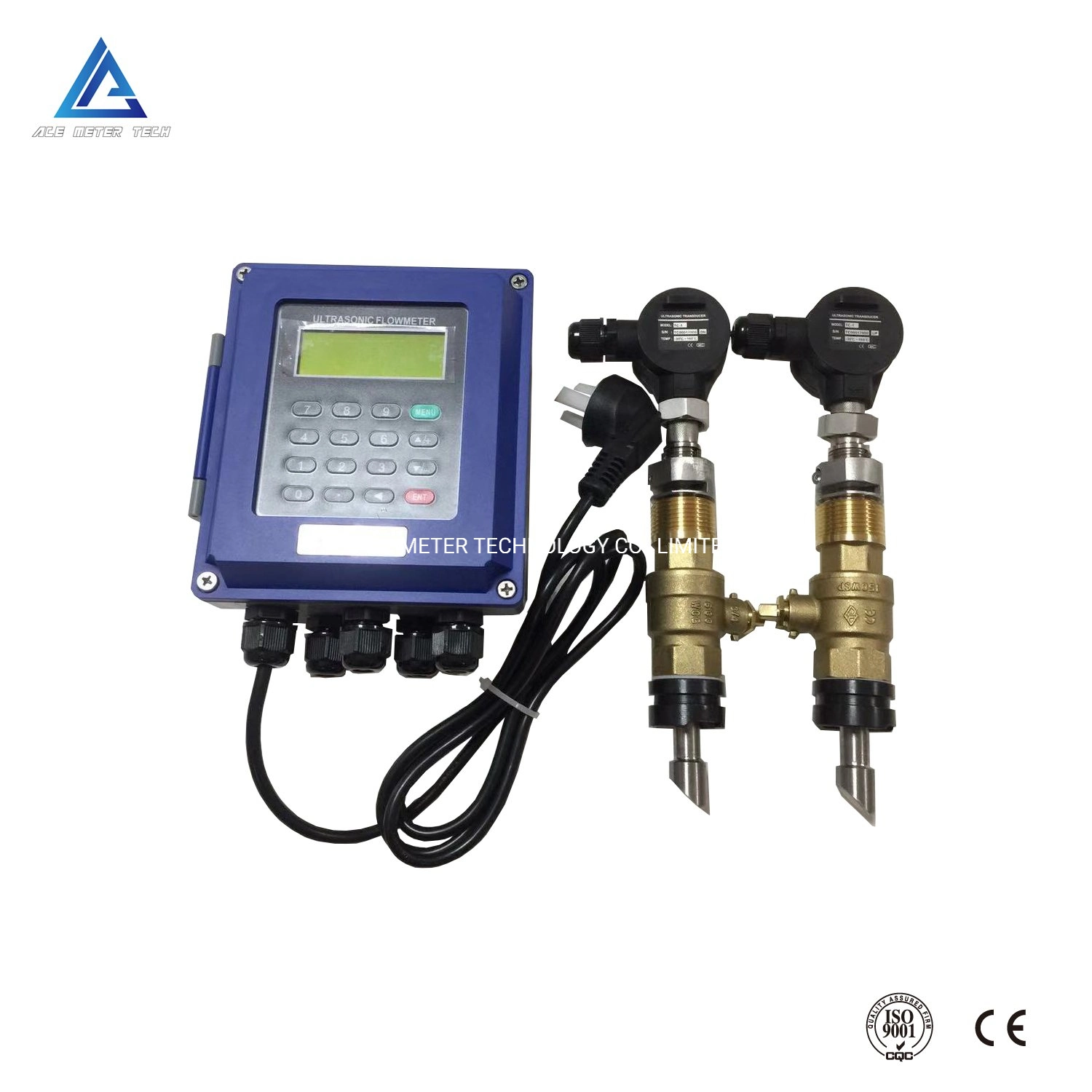

Manufacturer Price Insertion Ultrasonic Sewage Flowmeter Wall Mounted Ultrasonic Sewage Flow Meter
| Item | Description |
| Transmitter | |
| Type | Wall Mounted Type |
| Available Medium | Water |
| Power Supply | 220VAC/24VDC |
| Accuracy | 1.00% |
| Velocity Range | 0.3-32m/s |
| Signal Output | 4-20mA |
| Pulse | |
| Communication | RS485 MODBUS |
| Electricity Entry | M20*1.5 |
| 1/2" NPT | |
| Shell Material | Industrial ABS |
| Cast Aluminum | |
| Protection Grade | IP67 |
| Optional Transducers | |
| Clamp On Transducer | |
| Medium Temperature | -40-90ºC |
| -40-160ºC | |
| Size | TS-1 DN15-DN100 -40-90ºC |
| TM-1 DN50-DN700 -40-90ºC(basic Configure) | |
| TL-1 DN300-DN6000 -40-90ºC | |
| HTS-1 DN15-DN100 -40-160ºC | |
| HTM-1 DN50-DN700 -40-160ºC | |
| HTL-1 DN300-DN6000 -40-160ºC | |
| Small Bracket Sensor BS-1 DN15-100 -40-90ºC | |
| Middle Bracket Sensor BM-1 DN50-300 -40-90ºC | |
| Extend Bracket Sensor BE-1 DN300-700 -40-90ºC | |
| High Temperature Small Bracket Sensor HBS-1 DN15-100 -40-160ºC | |
| High Temperature Middle Bracket Sensor HBM-1 DN50-300 -40-160ºC | |
| High Temperature Extend Bracket Sensor HBE-1 DN300-700 -40-160ºC | |
| Protection Grade | IP67 |

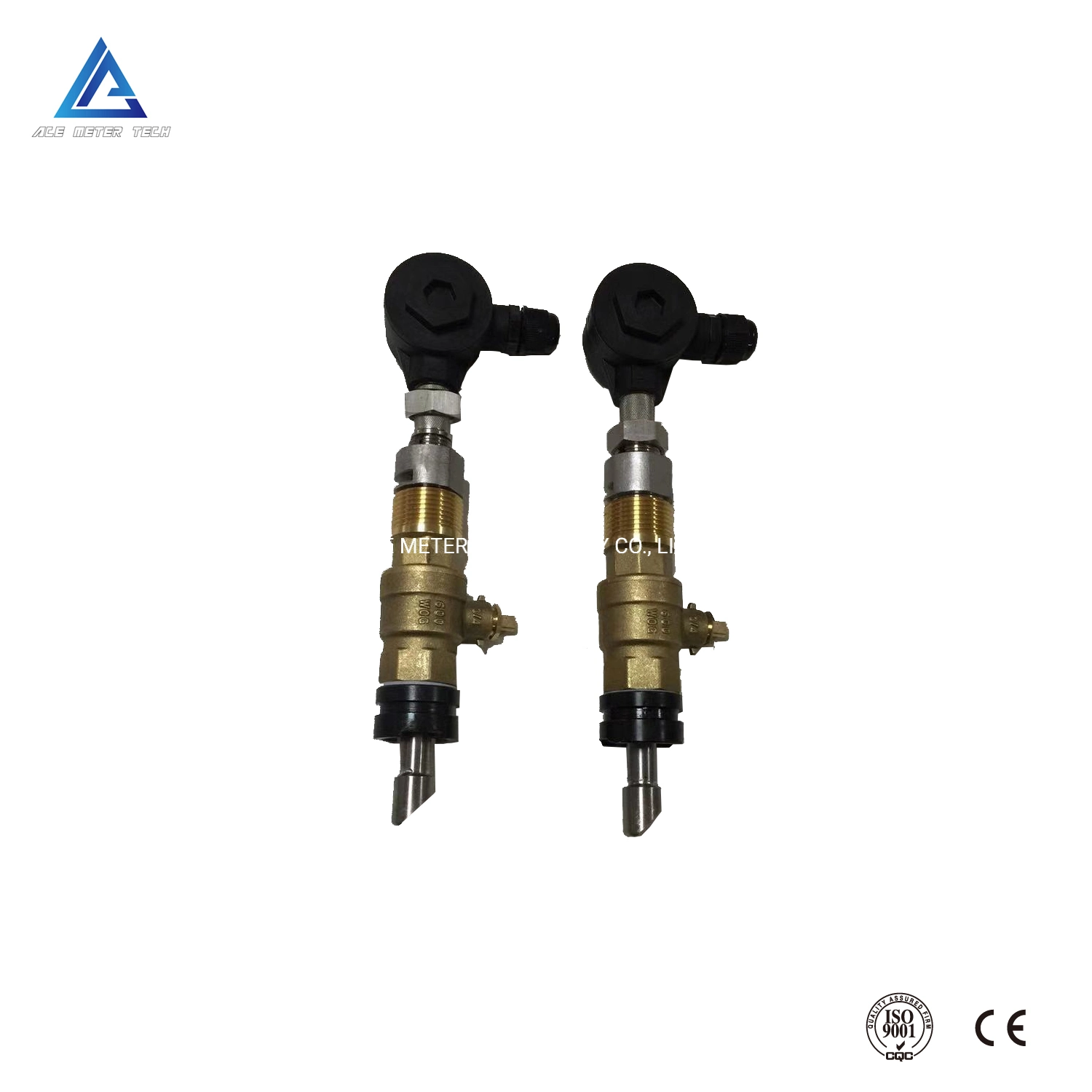

| Insertion Transducer | |
| Body Material | Copper |
| Stainless Steel 304 | |
| Working Temperature | -40-160ºC |
| Connection | Ball Valve with Base |
| Rated Pressure | PN16 |
| Diameter Size Range | ≥DN50 |
| Protection Grade | IP67 |
| Inline Transducer | |
| Size Range | DN15-DN1200 |
| Body Material | Carbon Steel (DN40-DN1200) |
| Stainless Steel 304 (DN15-DN400) | |
| Working Temperature | -40-160ºC |
| Rated Pressure | PN25 (DN15-DN32 SS304 body) |
| PN16 (DN40-DN600) | |
| PN6 (DN700-1200) | |
| Connection | Flange(GB,DIN,ANSI,JIS,HG or Customize) |
| Thread(NPT,BSP,GB or Customize) | |
| Protection Grade | IP67 |
