Features
Compact structure
Digital circuit compensation
Strong anti-interference, good long-term stability
Small diameter, small size, easy to install and use
Can measure absolute pressure, gauge pressure and sealed gauge pressure
A variety of electrical connections
Liquid contacting diaphragm 316L
Suitable for mass production
Applications
Air compressor
Hydraulic and pneumatic equipment
Servo valves and drive
Air conditioning systems
Piping systems
Product overview

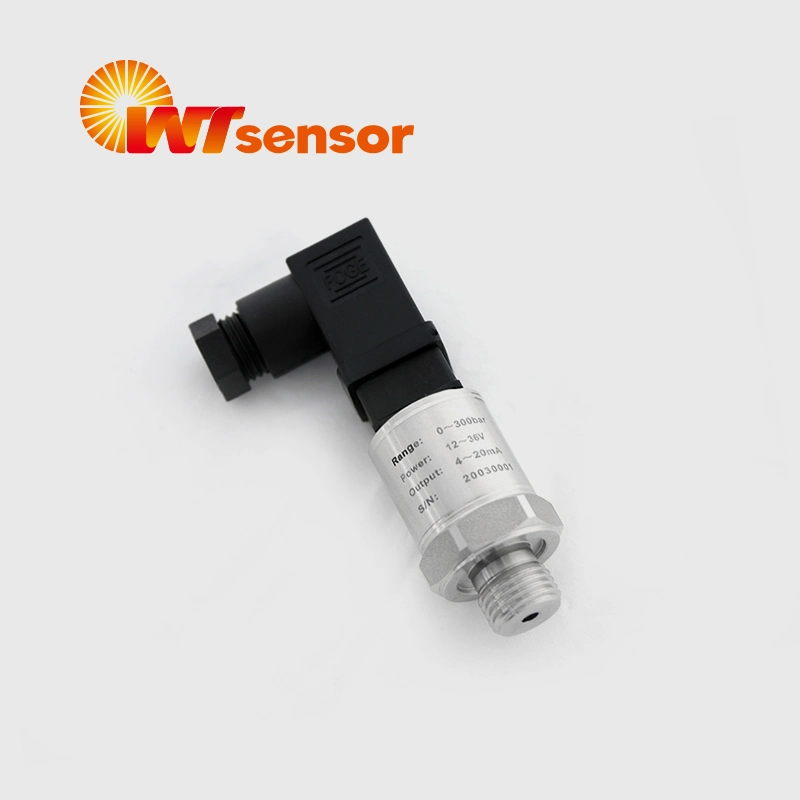

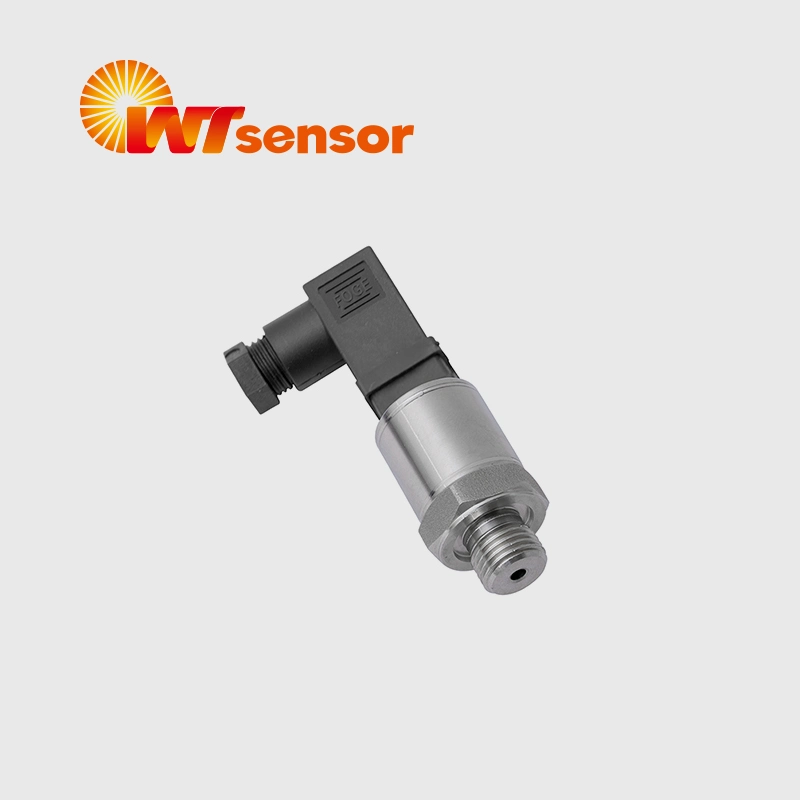

PCM390 pressure transmitter is specially designed for small and medium equipment applications such as booster pumps and air compressors. It is also applicable to a wide range of industrial applications, with a variety of structures, output forms and pressure connections to meet the requirements of most applications. PCM390 is designed with compact structure which especially applies to the installation in small space.
Note: Torque depends on various factors such as material of gasket, supporting materials, lubrication of thread and pressure.
Note: G stands for gauge pressure, A, absolute pressure, S, sealed gauge pressure.
Compact structure
Digital circuit compensation
Strong anti-interference, good long-term stability
Small diameter, small size, easy to install and use
Can measure absolute pressure, gauge pressure and sealed gauge pressure
A variety of electrical connections
Liquid contacting diaphragm 316L
Suitable for mass production
Applications
Air compressor
Hydraulic and pneumatic equipment
Servo valves and drive
Air conditioning systems
Piping systems
Product overview
PCM390 pressure transmitter is specially designed for small and medium equipment applications such as booster pumps and air compressors. It is also applicable to a wide range of industrial applications, with a variety of structures, output forms and pressure connections to meet the requirements of most applications. PCM390 is designed with compact structure which especially applies to the installation in small space.
| Performance parameters | |
| Pressure range | -100kPa…0~35kPa…10MPa |
| Pressure reference | Gauge pressure, Absolute pressure, Sealed gauge pressure |
| Supply & output | 4~20mA, 0~5V, 0~10V (12~30VDC) |
| 0.5~4.5V R/M(5VDC) | |
| Accuracy | ±0.5%FS(typ.); ±1%FS(max.) |
| Hysteresis & repeatability | ≤±0.1%FS |
| Temp. drift | ≤±1.5%FS(-20ºC~85ºC) |
| Response time | <4ms |
| Service life | ≥10×106 pressure cycles |
| Ambient temp. | -20ºC~80ºC |
| Medium temp. | -30ºC~105ºC |
| Storage temp. | -40ºC~120ºC |
| EMC-interference | IEC 61000-6-3 |
| EMC-immunity | IEC 61000-6-2 |
| Insulation resistance | ≥100MΩ/500VDC(200MΩ/250VDC) |
| Vibration resistance | Sine curve: 20g, 25Hz~2kHz; IEC 60068-2-6 |
| Random: 7.5grms, 5Hz~1kHz; IEC 60068-2-64 | |
| Shock resistance | Shock: 200g/1ms; IEC 60068-2-27 |
| Free fall: 1m; IEC 60068-2-32 | |
| Protection | IP65 |
| Material | Liquid contacting part: ASTM S31603 (AISI316L) |
| Housing: ASTM S30400 (AISI304) | |
| Electrical connection: PA66 | |
| Net weight | 50g~90g |
| Size of hexagon | HEX22 |
| Electrical connection & wiring method |
| Application of damper |
| Pressure port |
Note: Torque depends on various factors such as material of gasket, supporting materials, lubrication of thread and pressure.
| Pressure range selection | |||||||
| Pressure range code | Pressure reference | Pressure range | Overpressure | Burst pressure | Remark | ||
| 35k | G | 0~35kPa | 300%FS | 600%FS | |||
| 70k | G | 0~70kPa | 300%FS | 600%FS | |||
| 100k | G, A | 0~100kPa | 200%FS | 500%FS | |||
| 160k | G | 0~160kPa | 200%FS | 500%FS | |||
| 250k | G, A | 0~250kPa | 200%FS | 500%FS | |||
| 400k | G | 0~400kPa | 200%FS | 500%FS | |||
| 600k | G | 0~600kPa | 200%FS | 500%FS | |||
| 1M | G | 0~1MPa | 200%FS | 500%FS | |||
| 1.6M | S | 0~1.6MPa | 200%FS | 500%FS | |||
| 2.5M | S | 0~2.5MPa | 200%FS | 500%FS | |||
| 4M | S | 0~4MPa | 200%FS | 400%FS | |||
| 6M | S | 0~6MPa | 200%FS | 400%FS | |||
| 10M | S | 0~10MPa | 200%FS | 300%FS | |||
| N1k | N/A | -100~0kPa | 200%FS | 400%FS | |||
| How to order |
